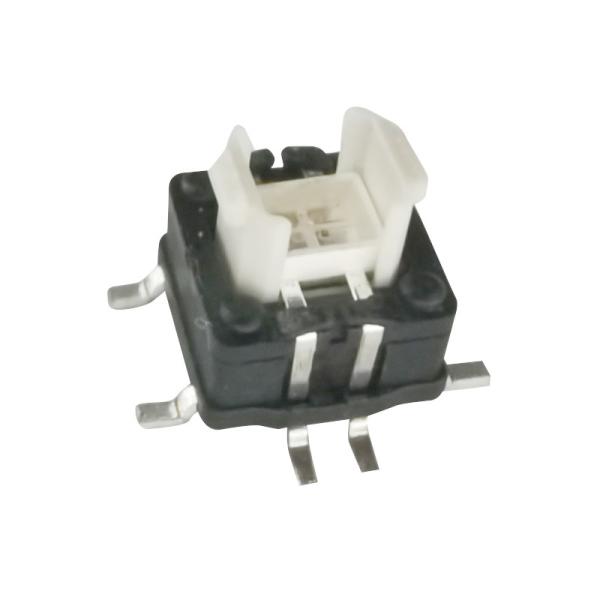

Illuminated Tactile Switch,Smt 7x7x7 Led RGB Push Button Switch With LED,Lamp Switch,Tact Switch With Led
Lamp switches'Features
Multiple cap options: Lettering, Graphic,Custom legends
Transparent, Silver plating, Balck painting, UV coating
Round, Square, Rectangle, Customized caps
• Sharp tactile response
• Mount options: THT, SMT
• Illumination options: Single colors, Bi-colors
• RoHS compliant and compatible
Materials
Cap: ABS or PC (polycarbonate)
Actuator: Polyamide (PA66 or PPA)
Housing: Fibre glass reinforced PA
Contact dome: Stainless steel, phosphor copper with silver or gold plated
Stationary contacts and terminals: Brass with silver or gold plated
Switch's Specification
| Electrical Rating | |
| Life Expectancy | 50,000 / 100,000 / 200,000 / 300,000 / 500,000 cycles |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ at 250VDC for 1 min. |
| Dielectric Strength | 250VAC for 1 min. |
| Operating Temperature | -25°C to +75°C |
| Relative Humidity | 45% to 85% |
| Salt Spray Test | NSS 48hrs or customized |
| Operating Force | 130±50gf / 160±50gf / 200±50gf / 260±50gf / 300±60gf /350±60gf |
| Travel | 0.25±0.10mm |
| Function | SPST, OFF-(ON), Momentary |
| Bounce Time | ≤5 mS |
LED Specifications
| | | Forward Voltage (V) at 20mA | |
| | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| | | | | |
| Pure Green | | | | |
Illuminated tact switch is an electrical equipment switch, which belongs to one of the passive components.
It can not be used alone. It can only cooperate with the active components to form a set of control system,
and its role can be brought into play.
The led tact switch is suitable for TV,DVD,instruments and meter equipment,audio apparatus
EMS: need 10-15 business days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European
or By Ocean & By Air
Service:
WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
If the product received is not as DESCRIBED, a replacement will be issued.
KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing the
components such as switches, sockets and connectors. The Production of Products mainly used
in computer products, consumer electronics, electrical & electronics, industrial equipment &
components......So far,KKG set up own factory ,Processing factory,OEM factory and sales company
in mainland China, Taiwan(China) and Hong Kong .
1. Strong R&D team, Tooling Design & Construction Capacity Experienced & professinal
engineers, in the line of switch and tooling over 8-15 years.
2. Improved Quliaty Assurance System100% assurance systems per ISO9001/ISO14001/
TS16949, make sure each product comply with customer requirement.
3. Entire production line & Quality Control100% assurance systems per ISO9001/ISO14001/TS16949,
make sure each product comply with customer requirement.
4. Good control of cost Self-suppllied metal & plastic parts.Auto-assembly line High effective capacity
